Triplet
Achromats |
| |

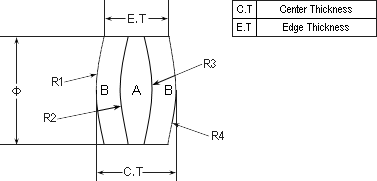

| Specifically designed for 1:1 conjugate ratios, Steinheil
triplets are ideal for use in relay systems. Utilizing symmetry
to correct for aberrations, Steinheils are made from a low index
center element cemented between two identical high index outer elements.
In addition, each lens is edged down to f-numbers with reasonable
aberration correction at increased fields. Decreased diameters allow
lens mounting in a smaller space than traditional Steinheil designs
permit. BaSF1; nd = 1.626. AR Coated, 1/4 wave MgF2. All dimensions
are in mm. |
|
Specifications: |
Diameter |
Dia.
Tolerance |
C.T.
Tolerance |
Centering
Tolerance |
Bevel |
6.25
- 12.50 |
0 |
0.3 |
3
arc min. |
0.1
x 45 |
Notes |
E.F.L Tolerance |
2% |
Design
Wavelength |
587.6nm |
E.T.
Tolerance |
Reference |
|
Plano-Convex Lenses
